Soil and Plant Nutrition Laboratory

The laboratory conducts research in the fields of soil sciences, soil fertility analysis, and plant nutrition. Based on the results of analyses, expert opinions on soil quality are provided, along with fertilization recommendations in accordance with the principles of sustainable agricultural production and current legal regulations.



Contact: usluge.tlo@krs.hr

Soil Analysis – instructions

The Soil and Plant Nutrition Laboratory performs standard soil analyses, including soil sampling, laboratory testing, and interpretation of results.

Why are soil analysis important?

  • Soil analysis involves a set of various chemical procedures used to determine the level of nutrients in a soil sample, as well as its chemical, physical, and biological properties relevant to plant nutrition.
  • The results of soil analysis provide answers to whether fertilization is needed for a specific crop, which fertilizer to use, and in what quantity.
  • Furthermore, soil analysis can reveal issues in crop cultivation caused by unfavorable soil reaction, accumulation of water-soluble salts, or specific nutrients.
  • Soil analysis is mandatory in integrated and organic farming systems.
  • It is a legal requirement when leasing agricultural land owned by the Republic of Croatia.

Soil Sampling
Proper sampling is often the most critical step in the soil analysis process. Taking a representative sample is of primary importance, as poor sampling can lead to incorrect recommendations.
When determining the production area represented by a single sample, one should consider the homogeneity of the area, which can be assessed by observing: slope, presence of depressions, water retention, soil structure, and lighter or darker coloration.
For perennial crops (e.g., orchards, vineyards), two samples should be taken from two depths:
•    1st depth: 0 – 30 cm
•    2nd depth: 30 – 60 cm
For vegetable and arable crops, as well as existing perennial plantation/orchards, a single-depth sample is taken:
•    Depth: 0 – 30 cm
A composite soil sample is taken from a uniform plot and consists of at least 12 well-mixed subsamples. The subsamples from each depth should be thoroughly mixed, and a 1 – 1.5 kg composite sample should be extracted for each depth. Samples must be properly labeled and delivered to the laboratory for analysis.
The sampling layout on a given plot is shown in the diagram below. When sampling, avoid edges and non-representative parts of the field.


Z model

W model

Sampling method::

Using a shovel or other suitable tool, dig holes to the required sampling depth. Then, use the shovel to vertically cut a slice of soil about 3–5 cm thick to the depth needed. Discard the outer edges of the slice, and use the central portion as one subsample (see diagram).

Slikovni rezultat za soil sampling

Optimal sampling time:

Sampling should be done after harvest and before soil preparation for the next crop. Do not take samples 1–3 months after fertilization.

Required information to submit with the sample:

  1. Name and surname of the landowner
  2. Address, phone number and/or email address
  3. Plot name or code
  4. Sampling depth

Alternatively, fill out the “Soil Analysis – Field Data” form, and submit in person or send from Monday to Friday, 8 AM – 3 PM to:

Institut za jadranske kulture i melioraciju krša
Laboratorij za pedologiju i ishranu bilja
za "Analizu tla"
Put Duilova 11
21000 Split

Soil Analyses - price list

Analyses

Price (€) with VAT

Sample preparation

5,00

pH-a in 1N KCl

5,00

pH-a u H2O

5,00

Carbonate content

6,00

Active lime content

10,00

Organic carbon (humus) content

8,00

Total nitrogen content (N)

13,00

Available phosphorus P content (as P2O)

15,00

Available potassium K content (as K2O)

15,00





Aqua regia extraction

15,00

Atomic absorption spectroscopy (AAS) – Mn, Zn, Cu, Fe, Mo (per element)

10,50

Soil texture

20,00

Fertilization recommendation

14,00

Field sampling

per agreement

Standard Fertility Analysis Packages (with Fertilization Recommendation)

Standard soil analysis for crops and vegetables, and fertilization of existing perennial crops (depth 0–30 cm)

57,00

Standard soil analysis for new vineyards, orchards, and olive orchards (depths 0–30 cm and 30–60 cm)

79,00

Note: Discounts are possible for larger numbers of samples.

Plant material analyses - instructions

Plant material analysis is an extremely useful tool in agricultural production. It is not only used to monitor plant nutrition, but can also identify nutrient deficiencies and/or imbalances. This enables farmers to apply fertilizers more efficiently in order to meet the plant’s nutrient requirements. In addition to improving crop production and avoiding unnecessary use of large amounts of fertilizer, correcting nutrient deficiencies also helps reduce production costs.

Soil analysis or plant material analysis?

Soil analysis is necessary when establishing a new orchard or plantation, as well at regular intervals to monitor nutrient levels in the soil. It is recommended to perform soil analysis every 3–5 years. Due to the physical and chemical properties of the soil that influence the plant’s ability to absorb nutrients, differences often occur between nutrient levels in the soil and in the plant. For this reason, plant material analysis becomes essential.

When should plant material be analysed?

  • Routine analyses – Analysis of leaf and/or petiole samples collected during the appropriate period, every 2–3 years, for the purpose of monitoring nutrient levels in the plant and adjusting the fertilization program for a specific crop.
  • Problem diagnostics – In cases where visible changes (symptoms) appear on the leaves indicating nutrient deficiencies, samples are collected from plants showing symptoms as well as from those without symptoms (“healthy plants”).

Which nutrient concentrations are measured?

Analysis results include the concentrations of nitrogen, phosphorus, potassium, calcium, magnesium, copper, iron, manganese, zinc, and molybdenum.

Recommended Sampling Procedures for Fruit and Vegetable Crops

Crop

Growth stage

Plant part to sample

Number of leaves (plants) per sample

Fruit Trees and Grapevines

Olive

1. Winter dormancy

2. Summer dormancy

Youngest fully developed leaf from the middle part of the current season’s shoot (without fruits)

50–100 leaves (5–10 plants)

Cherry, Sour Cherry, Apple, Apricot

Mid-season – summer

Leaves from the middle part of the new shoot

50–75 leaves (5–25 plants)

Pear, Plum

Mid-season – summer

Leaves from the middle part of the new shoot

50–75 leaves (5–25 plants)

Peach, Nectarine

Spring – fruit set

Leaves from the middle part of the shoot

25–50 leaves (5–20 plants)

Strawberry

Flowering

Youngest fully developed leaves

25–50 leaves (10–25 plants)

Grapevine

1. End of flowering

Petioles and leaves opposite the first cluster

50–100 petioles and leaves

2. Beginning of veraison

Youngest fully developed leaves

15–25 leaves (15–25 plants)



Crop

Growth stage

Plant part to sample

Number of leaves (plants) per sample

Tomato (protected cultivation)

1. From flowering to fruit set

Leaf and petiole opposite the terminal flower cluster

15–20 leaves (15–20 plants)

2. From fruit set to fruiting

Youngest fully developed leaf

Tomato (open field)

From flowering to fruit set

Leaf opposite or below the terminal flower cluster

15–20 leaves (15–20 plants)

Pepper

Entire growing season

Youngest fully developed leaves

25–30 leaves (25–30 plants)

Cucumber, Watermelon, Melon

1. Before fruit set

Leaves on the main vine near the base of the plant

15–20 leaves (15–20 plants)

2. Rest of the growing season

Youngest fully developed leaves

Leafy Vegetables (lettuce, spinach, etc.)

Entire growing season

Youngest fully developed leaves

25–30 leaves (25–30 plants)

Potato

Before or at the beginning of flowering

Youngest fully developed leaves (3rd–6th leaf from the top of the plant)

25–35 leaves (15–20 plants)



Leaves should be delivered fresh or dried at room temperature. Before drying, the leaves should be quickly washed (< 1 min) in a highly diluted detergent solution, rinsed several times (with tap or distilled water), and placed on paper towels to dry.

For all other crops, sampling procedures and timing, please contact:
Dr. Branimir Urlić
Tel.: +385 21 434 478
E-mail: usluge-tlo@krs.hr

Laboratory for Soil and Plant Nutrition
Institute for Adriatic Crops and Karst Reclamation
Put Duilova 11
21000 Split



Plant material analyses - price list

ANALYSIS

Service

Price € (including VAT)

Sample preparation

5.00

Determination of dry matter

5.00

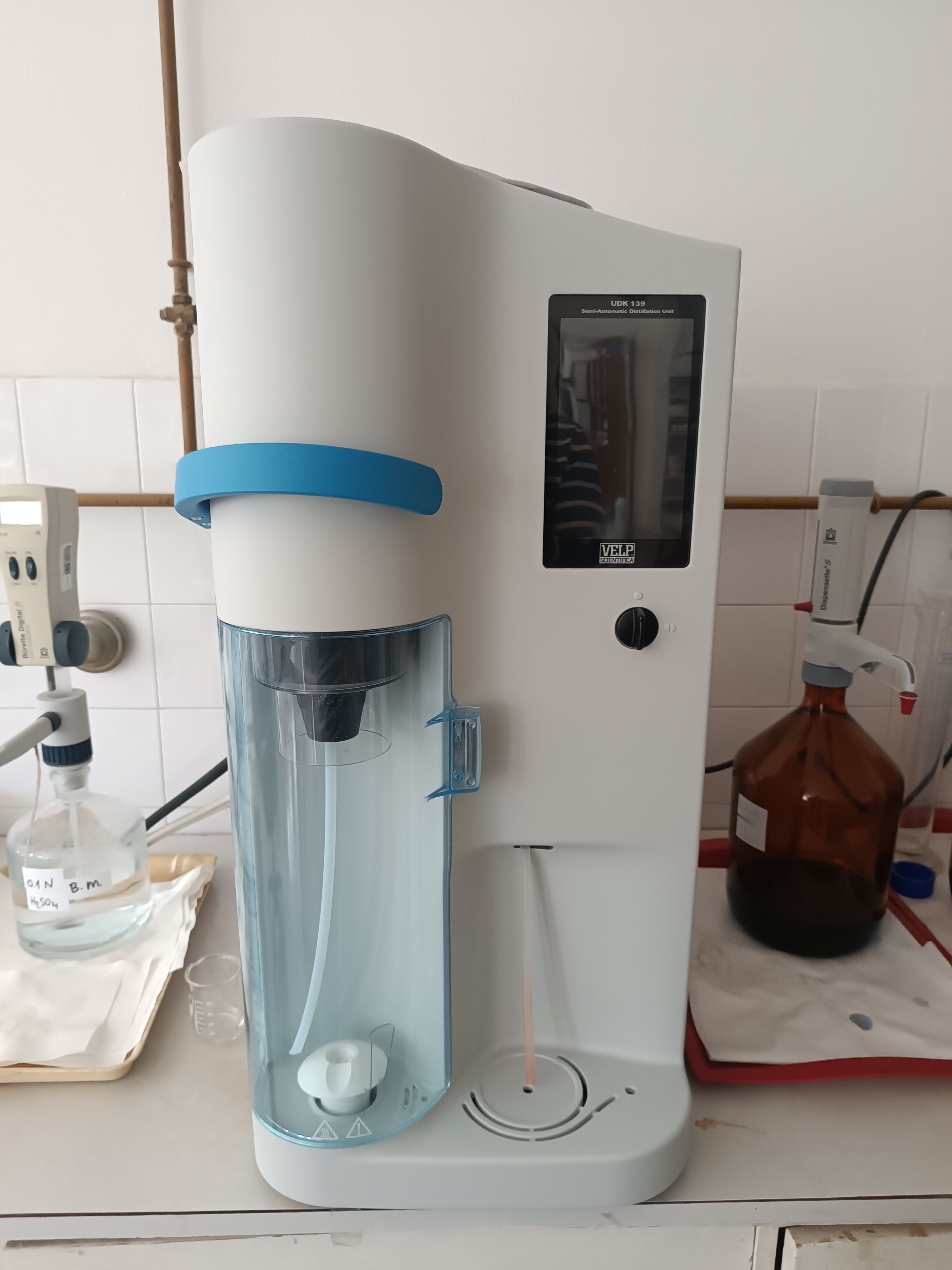

Determination of total nitrogen (N)

13.00

Determination of total phosphorus (P)

9.00

Determination of total potassium (K)

8.00

Digestion for determination of elements in plant material

13.00

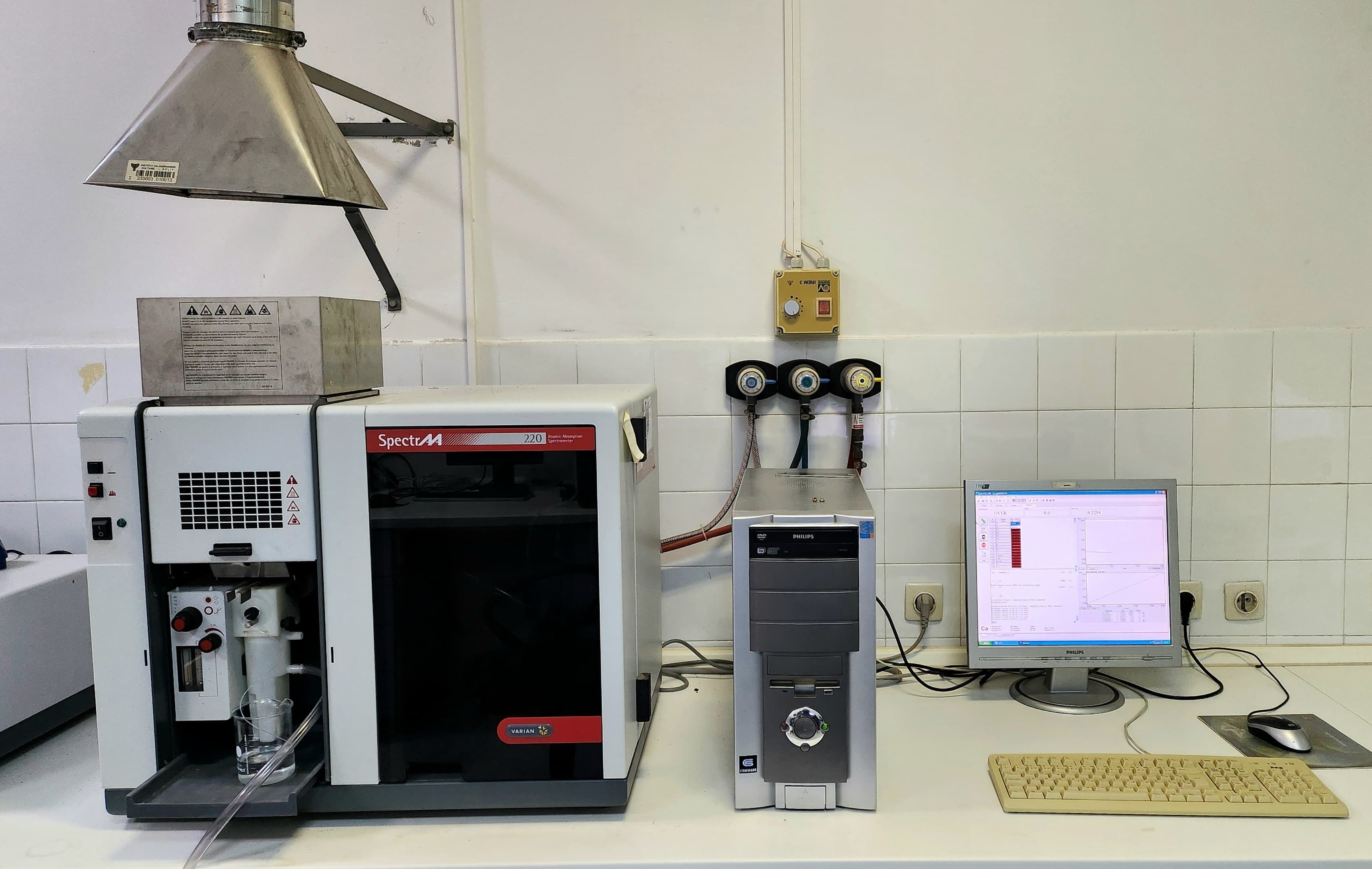

Determination of element content by atomic absorption spectrometry (AAS) – Ca, Mg, Fe, Mn, Cu, Zn

11.00

Extraction of plant material for determination of anions and cations

10.00

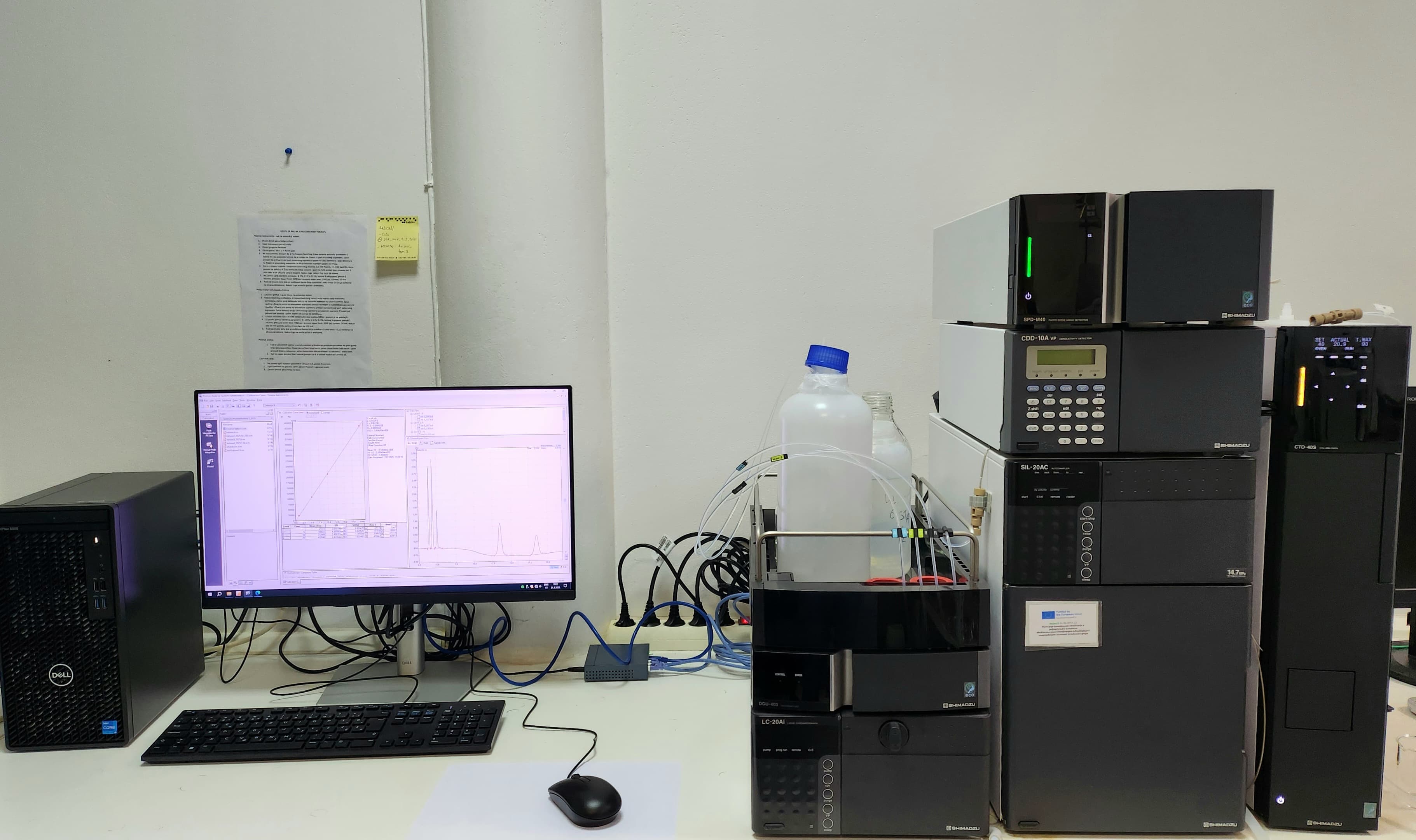

Determination of anion and cation content by ion chromatography

16.00



Set

Price (€)

Standard Set – Plant Material I (NPK)

42.00

Standard Set – Plant Material II (NPK + Ca + Mg + micronutrients)

75.00





Payment for services

Payment for services:

By payment slip to the account of the Institute for Adriatic Crops and Karst Reclamation:
HR8523600001101466432, OIB: 90884993104, with the note: Soil Analysis or Plant Material Analysis or Water Solution Analysis.

Samples may also be sent by mail with proof of payment. For all details regarding sample submission and payment, additional information may be obtained from the Laboratory Manager.

Contact:

Telephone:
+385 21 434 417 (Laboratory)
+385 21 434 478 (Dr. Branimir Urlić)

E-mail: usluge.tlo@krs.hr
